Research Journal of the University of Ruhuna, Sri Lanka- Rohana 11, 2019

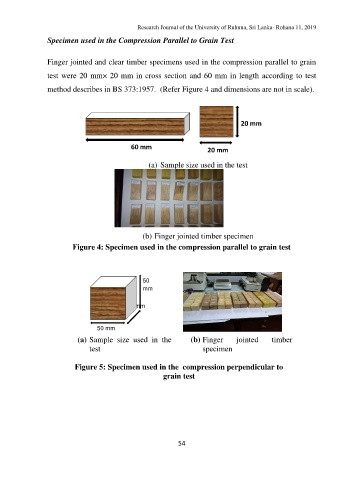

Specimen used in the Compression Parallel to Grain Test
Finger jointed and clear timber specimens used in the compression parallel to grain
test were 20 mm× 20 mm in cross section and 60 mm in length according to test
method describes in BS 373:1957. (Refer Figure 4 and dimensions are not in scale).
20 mm
60 mm
20 mm
(a) Sample size used in the test
(b) Finger jointed timber specimen
Figure 4: Specimen used in the compression parallel to grain test
50
mm
50 mm
50 mm
(a) Sample size used in the (b) Finger jointed timber
test specimen
Figure 5: Specimen used in the compression perpendicular to
grain test
54
